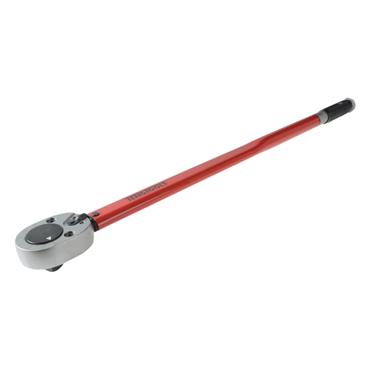

Teng 3492ag-E 3/4"sd Torque Wrench (65-450nm)

Product Description

TENG 3492AG-E 3/4SD TORQUE WRENCH(90-450Nm)

TengTools 3492AG-E torque wrench with 3/4? square drive is suitable for applications requiring torque between 65-450 Nm, such as powerful tightening of larger fasteners in industrial machinery maintenance and heavy vehicle applications. The reversible 24-teeth ratchet mechanism, compliant with DIN3122 standard, has a 15° swing arc and an accuracy of ±4%. It is specifically designed for clockwise fastening of right-hand threads and features an integrated angular gauge for easy post-tightening. A shift lever allows quick direction changes with just one hand. Some of its standout features include an accurate click mechanism that clearly signals when the desired torque is reached, an easy-to-read secondary ft/lb scale, and a handle with markings indicating where to place the hand. The Twist lock ensures that the set torque does not change accidentally during use. Its robust design, with a length of 850 mm and a weight of 3840 g, ensures durability in demanding environments. It comes in a protective storage case for safe transport. Each torque wrench is assigned a unique number and individually tested to comply with ISO 6789 standards and comes with a ‘Declaration of Conformance’ for guaranteed accuracy.

Product Type Torque Wrenches
Length 850 mm
Drive 3/4"
No. of teeth 24
Primary range 65-450
Primary scale resolution 5
Secondary range 48-330 ft-lb
Secondary scale resolution 3,69
Accuracy ± 4%
Conformance certificate Factory
Reverse direction Flip reverse lever
Angular gauge Yes
Mechanism Click
Width (mm) 72,5 mm
Item weight (g) 3840
