f5020/6 A120grit Fan Grinder

Product Description

F5020/6 A120GRIT FAN GRINDER

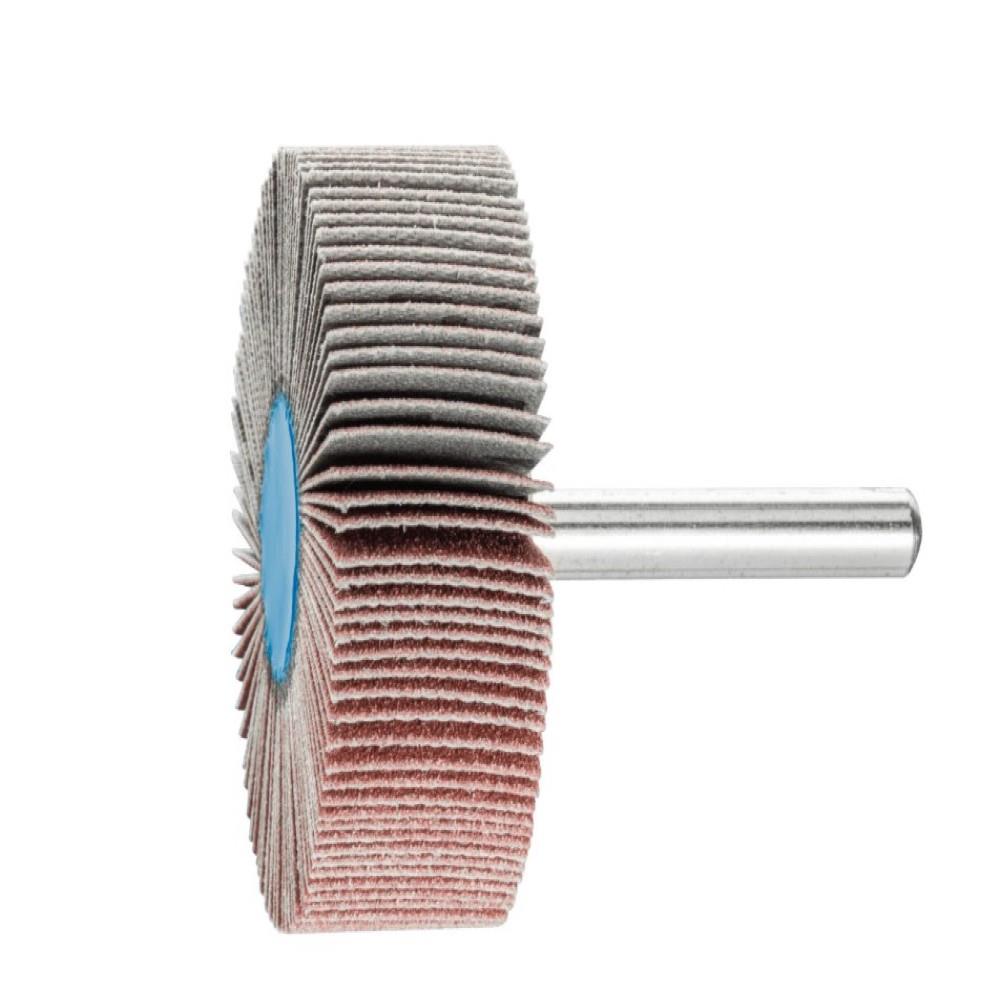

The PFERD 50 x 20 x 6mm A120 Shaft Mounted Flap Wheel is a premium-quality abrasive designed for fine grinding, blending and surface finishing on a wide range of metals. Manufactured with high-quality aluminium oxide abrasive cloth arranged in a radial flap design, it provides excellent flexibility, consistent stock removal and an outstanding surface finish.

The resin-bonded abrasive flaps continually expose fresh abrasive grain during use, ensuring consistent cutting performance and extended tool life. The flexible flap construction allows the wheel to conform perfectly to contours, edges and internal surfaces, making it ideal for precision finishing applications where control and accuracy are essential.

Key Features

Premium aluminium oxide abrasive cloth
A120 fine grit for smooth finishing and blending
Flexible radial flap design follows contours and irregular surfaces
Consistent stock removal throughout the tool's life
Fresh abrasive grain continuously exposed for maximum performance
Flat moulded-core design allows grinding close to edges and corners
Excellent surface finish with minimal gouging
Long service life with reduced abrasive loading
Professional-quality abrasive for workshop and industrial applications
Supplied in a convenient pack of 10 wheels

Ideal Applications

Fine grinding
Surface finishing
Weld blending
Deburring
Edge finishing
Surface preparation
Levelling
Satin finishing
Brush matting
Matt finishing
General metal fabrication

Suitable Materials

Steel
Stainless Steel (INOX)
Aluminium
Brass
Copper
Cast Steel
Grey Cast Iron (GG/GJL)
Nodular Cast Iron (GGG/GJS)
Annealed Cast Iron
Hardened and Heat-Treated Steels
Steels up to 1,200 N/mm²
Steel Materials over 54 HRC

Compatible Machines

Straight Grinders
Flexible Shaft Drives
Drive Spindles

Specifications

Brand: PFERD
Product Type: Shaft Mounted Flap Wheel
Wheel Diameter: 50mm
Wheel Width: 20mm
Shank Diameter: 6mm
Shank Length: 40mm
Grit: A120 (Fine)
Abrasive Material: Aluminium Oxide
Maximum Speed: 15,200 RPM
Recommended Operating Speed: 7,000 RPM
Pack Quantity: 10 Wheels
Storage and Safety

Store in a clean, dry environment away from moisture and extreme temperatures. Always inspect the flap wheel before use and do not use if damaged or excessively worn.

For optimum performance, operate at the recommended speed of 7,000 RPM. Never exceed the maximum operating speed of 15,200 RPM. Ensure the shank is clamped by at least 15mm before use and reduce contact pressure if operating above the recommended speed.

To maximise tool life and minimise heat generation, use light contact pressure and, where appropriate, apply a suitable grinding oil for the material being worked. Always wear appropriate PPE, including safety glasses, gloves, hearing protection and respiratory protection. Follow the power tool manufacturer's operating and safety instructions at all times.

The PFERD 50 x 20 x 6mm A120 Shaft Mounted Flap Wheel is the ideal choice for professional engineers, fabricators and maintenance technicians requiring exceptional flexibility, long service life and a high-quality surface finish on a wide range of metals.
