M8x20x6 Flame Double Cut Carbide Burr

Product Description

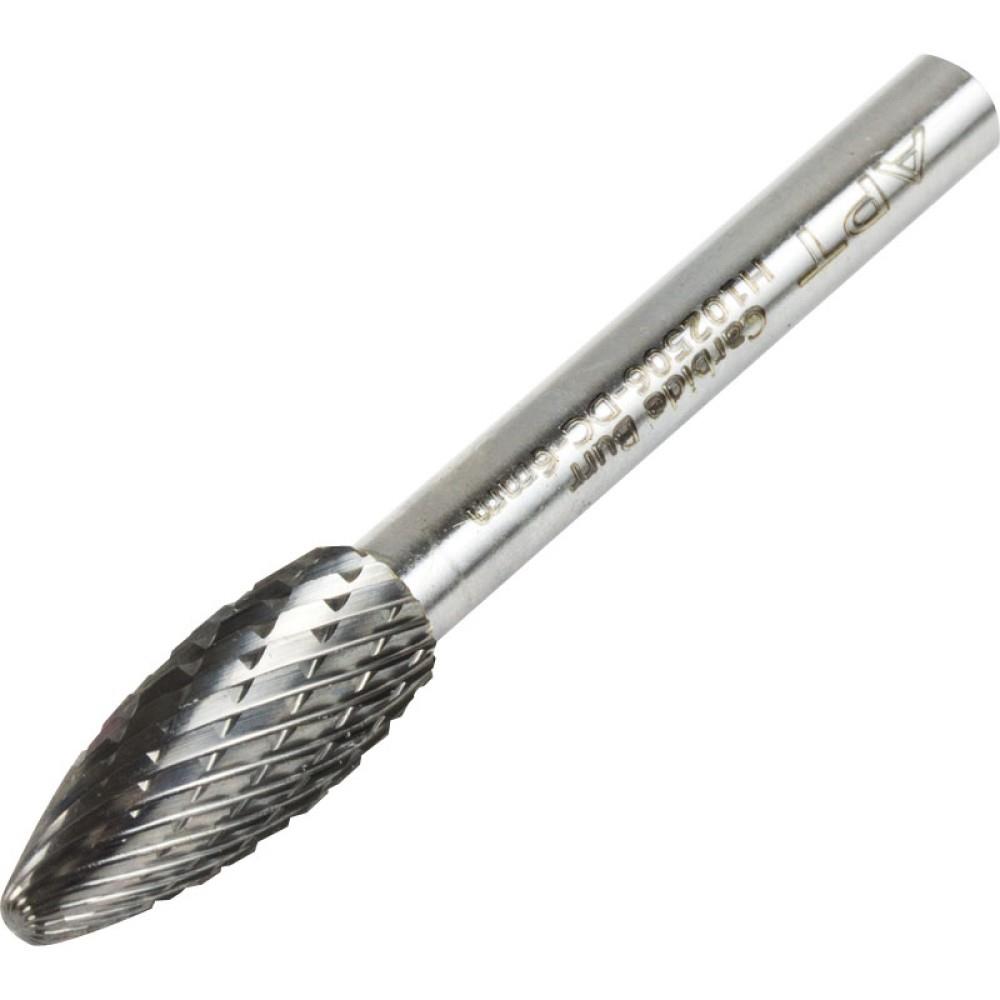

M8x20x6 FLAME DOUBLE CUT CARBIDE BURR

Double cut flame carbide burr with an 8mm diameter, 6mm shank, 20mm head length and 65mm overall length. Type H design with brazed steel shank.

Suitable for use on steel, stainless steel, cast iron, titanium, nickel and copper.

FEATURES and BENEFITS

• Double cut carbide burr


• Flame shape - Type H


• Brazed steel shank


• Suitable for steel and stainless steel


• Suitable for cast iron


• Suitable for titanium, nickel and copper

TECHNICAL SPECIFICATIONS

• Type: H


• Diameter: 8mm


• Shank Diameter: 6mm


• Head Length: 20mm


• Overall Length: 65mm


• Product Code: H082006-DC


• Recommended Minimum Speed: 16,000 RPM


• Recommended Maximum Speed: 21,000 RPM

RECOMMENDED RPM

Running the burr too slowly may cause chipping, while running the burr too fast may cause premature wear. For brazed burrs, do not allow the burr to become too hot as this can cause detachment of the head from the shank.
