PCL Ac21jm05 1/2"bsp Male Thread Airflow Coupling
Data Sheets:
Product Description

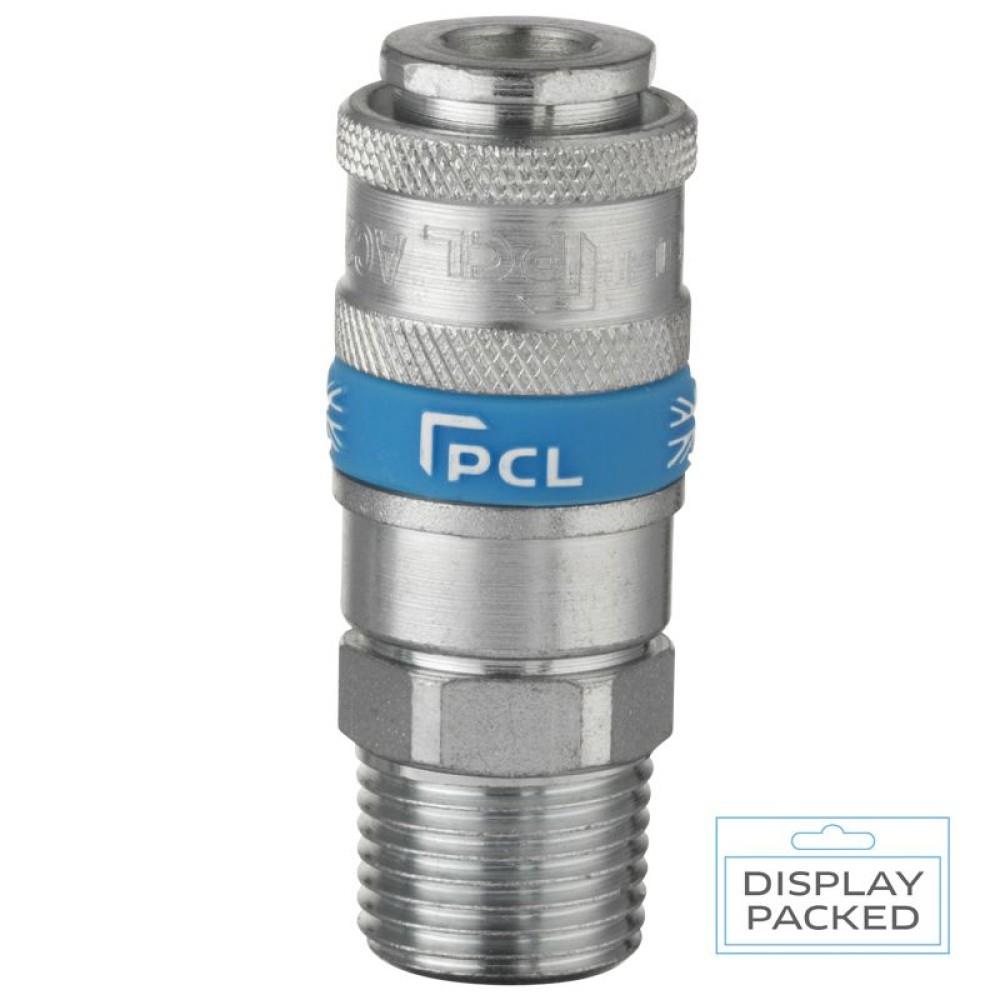

PCL AC21JM05 1/2"BSP MALE THREAD AIRFLOW COUPLING
The Airflow Coupling is the original quick release "PCL" with around 75 years of design enhancement. This product, along with the Standard Adaptor, is still manufactured in the UK to the highest possible standards, with the "Made in Sheffield" Airflow series now a benchmark in the UK for quality and reliability.
Suitable for most compressed air applications - particularly fixed applications where the coupling is used over a workbench and a single action is preferred.
Feautures and Benefits:
Single action - designed for FIXED applications
Compatible with Standard Adaptors
Steel Construction - robust and hard-wearing, ideal for use in the engineering/workshop environment
Positive locking mechanism
British Standard Profile
Date stamping of each coupling to increase traceability and increase quality performance
Blue PCL silicone band for identification, protection and ease of use
Specifications:
Coupling Style Coupling
Thread Type Male
Thread Size R 1/2
Nominal Bore (mm) 5
Flow Rate 43 cfm @ 100 psi
Maximum Working Pressure 14 bar / 200 psi
Temperature Range -40°C to 100°C
Material Steel
Interchange Rectus 19, Kee 057 Series, OETIKER SC Series P, Ludecke ESB
