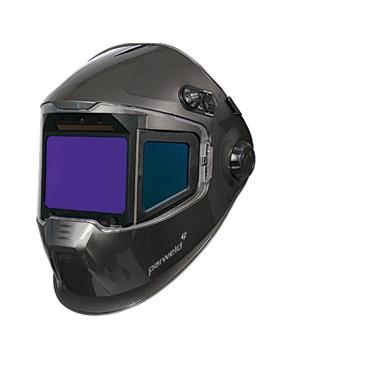

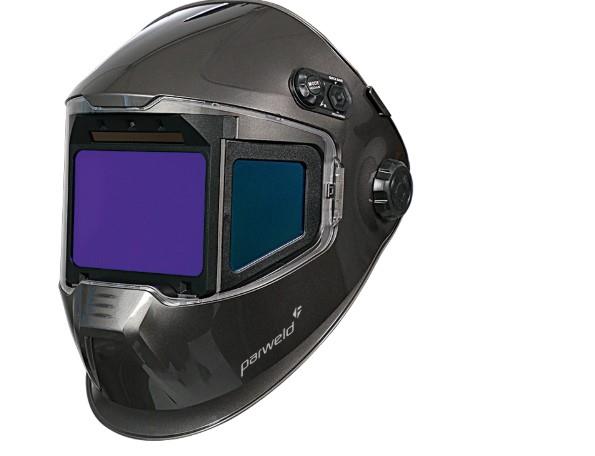

Parweld Xr942h Panoramic True Colour Graphite Welding and Grinding Helmet
Data Sheets:
Product Description
PARWELD XR942H PANORAMIC TRUE COLOUR GRAPHITE WELDING and GRINDING HELMET
With the XR942 Panoramic Welding and Grinding Helmet from Parweld.
Features a Wide Panoramic ADF (180° Internal Vision) to improve peripheral vision, Active Shading Side Windows and Auto Mode to automatically set the shade selection of both the main window view and side windows.
The XR942H also features TIS Mode, which slows lightening of ADF to reduce fatigue when undertaking High-Power Welding.
Selectors include: Weld Cut Selector, Fast Selector Grind Mode and Manual Shade Adjustment.
Key Features Include:
Panoramic View
Active Darkening Side Windows
Light Shade DIN 3
Exceptional Optical Clarity
PLASMA Shades From DIN 4 To DIN 8
Welding Shades From DIN 9 To DIN 14
True Colour Lens For More Realistic Vision Of The Weld
TIS Mode – Reduces Fatigue By Gradually Lightening
Auto Mode – Automatically Finds The Right Setting
Tack Mode – Rapid Tacking With Minimal Delay
Weight 0.693 kg
Viewing Size
116 x 81mm (4.56" x 3.18")
Set Size
Single Piece Set/Item
Style and Design
Graphite
Grind Mode
Yes
External Shade Control
Yes
Light State
DIN Shade 3
Dark State
DIN Shade 4-14 (Variable)
Dark to Light
1/30000s
Sensitivity
External Variable
UV/IR Protection
Permanent Shade DIN16
Power Supply
Built-In Solar Cells and Replaceable Battery Pack
Minimum Amp Requirement
5A
Power On/Off
Fully Automatic
Storage Temperature
-20ºC to +70ºC (-4ºF to -158ºF)
Operating Temperature
-5°C to +55°C (4°F to 131°F)
Relative Humidity
20% To 80%
Material
High Impact Polyamide Nylon
Conforms To
BS EN 175, BS EN ISO 16321-1, Impact Rating E (120 m/s)
